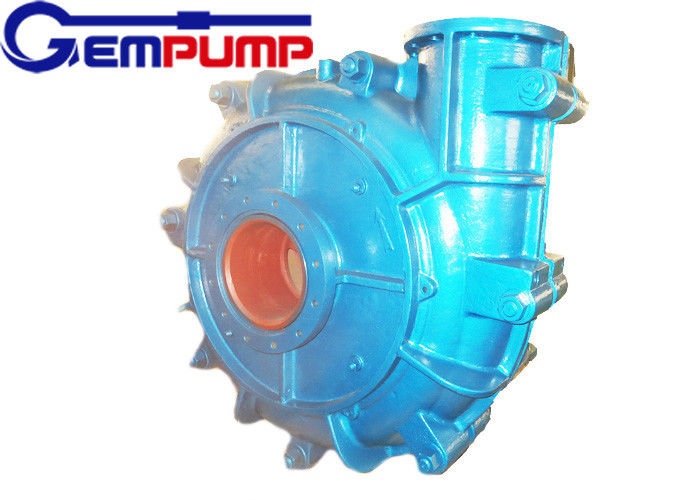

300S-L(R) Low Abrasive Slurry Pump Mining Slurry Pump Cantilever and horizontal double shell axial suction
Catégorie:
Pompes centrifuges électriques
Prix:
1000 USD/Set
Méthode de paiement:
T/T.
Les spécifications
Model:
300S-L(R)
Port:
Beijing, Tianjin
Color:
Blue Or Other
Sealing type:
Gland seal, Mechanical seal, Expeller seal
Drive:
DC、CR、ZVZ、CV
Surligner:
heavy duty slurry pump
,high pressure slurry pump
Introduction au projet
300S-L(R)Gempump Low Abrasive Slurry Pump Mining Slurry Pump Cantilever and horizontal double shell axial suction
Description
- L series Rugged heavy duty slurry pump for medium to lower heads.It incorporates the same design points of the (R) and plus higher efficiency impellers at an attractive initial cost.Designed for rugged duties while offering higher efficiencies, the L series is a combination of the proven (R) unique features.
- Higher efficiency impellers make the L Series a valuable feature in any plants.
Applications
- Secondary Milling Circuits
- Thickener Over and Underflow
- Ball mill discharge
- Rod mill discharge
- Chemical Process
- Heavy Minerals
- Plant Water Supply
- Thickener Overflow
- Paper and Pulp
- Slag Granulation
Feature
- Slurry pump structure: L-type light slurry pump for the cantilever, horizontal double shell axial suction centrifugal slurry pump. The pump outlet position can be used according to the need to press 45 ℃ interval, rotating eight different angles to install.
- Slurry pump material: L-type light slurry pump with a replaceable wear-resistant metal lining, impeller, sheath, shield and other flow components are used wear-resistant metal.
- Slurry pump use: Compared with the heavy slurry pump, the pump speed, small size, light weight, suitable for conveying fine particles, low concentrations of slurry or corrosive slurry. The weight of the slurry is generally not more than 30%, and it can also be used to deliver high concentrations of low abrasive slurry.
- Sealed form: L-type pump shaft seal can be used packing seal, vice impeller seal, filler plus impeller seal, mechanical seal and other types.
- Transmission type: DC direct drive, CR parallel belt drive, ZVZ upper and lower belt drive, CV vertical belt drive and other types.
Structure ＆ Material
The numbers of the main parts
|
032:Frame Plate
060: Intake Joint 132:Discharge Joint 083:Throat bush 110:Volute Liner 147: Impeller |
122: Stuffing Box Seal
036: Frame Plate Liner 013:Cover Plate 018:Cover Plate Liner 124: Volute Cover Seal 041: Frame Plate Liner Insert |
| LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
| Standard | Chrome Alloy Natural Rubber |
Chrome Alloy Natural Rubber |
SG Iron | SG Iron | Chrome Alloy or SG Iron |
Chrome Alloy or SG Iron |
SG Iron | Rubber and Nitrile |
| Options | Acid Resist™Neoprene Butyl Nitrile Hypalon |
Acid Resist™Neoprene Butyl Nitrile Hypalon |
N/A | MS Fabricated |
Acid Resist™ | Acid Resist™ | Acid Resist™ | Neoprene Viton |
PERFORMANCE
| Type | Allowable Mating Max. Power(Kw) | Clear Water Performance | Impeller | |||||
| Capacity/Q m³/hr | Head/m | Speed/rpm | Max Efficiency/% | NPSH/m | Nos of Vane | Impeller Diameter/mm | ||
| 20A-L | 7.5 | 2.34-10.8 | 6--37 | 1400--3000 | 30 | 4 | 152.4 | |
| 50B-L | 15 | 16.2--76 | 9--44 | 1400--2800 | 55 | 3.5--8 | 5 | 190 |
| 75C-L | 30 | 18-151 | 4--45 | 900--2400 | 57 | 3--6 | 4 | 229 |
| 100D-L | 60 | 50-252 | 7-46 | 800--1800 | 60 | 2--3.5 | 4 | 305 |
| 150E-L | 120 | 115--486 | 12-51.5 | 800--1500 | 65 | 2--6 | 4 | 381 |
| 200E-L | 120 | 234--910 | 9.5--40 | 600--1100 | 64 | 3-6 | 4 | 457 |
| 250F-L | 120 | 396--1425 | 8--30 | 500--800 | 77 | 2--10 | 5 | 550 |
| 300S-L | 560 | 468--2538 | 8--60 | 400--950 | 79 | 2-10 | 5 | 653 |
| 350S-L | 560 | 650--2800 | 10--59 | 400--840 | 81 | 3--10 | 5 | 736 |
| 400ST-L | 560 | 720--3312 | 7--51 | 300--700 | 80 | 2--10 | 5 | 825 |
| 450ST-L | 560 | 1008--4356 | 9--48 | 300--600 | 80 | 2--9 | 5 | 933 |
| 550TU-L | 1200 | 1980-7920 | 10-50 | 250-475 | 86 | 4-10 | 5 | 1213 |
Select Chart
